FSA E-MTB upgrades: How cranks & wheels improve your ride

E-mountainbikes have developed rapidly in recent years. Frames, chassis and motors are pushing the boundaries of what is possible on the trail. But beyond these main components, more and more bikers are discovering that the drivetrain and wheels in particular can have a massive impact on the bike's behaviour.

FSA E-MTB upgrades: components that make the difference

Cranks and wheels in particular play a key role in translating motor power and rider input into control, efficiency and stability. Upgrading these components can significantly improve pedalling dynamics, handling and general confidence in the bike.

FSA (Full Speed Ahead) has developed a complete ecosystem of e-bike components. These are specially designed to withstand the higher loads caused by the additional power of the motor and at the same time optimise performance for different riding styles.

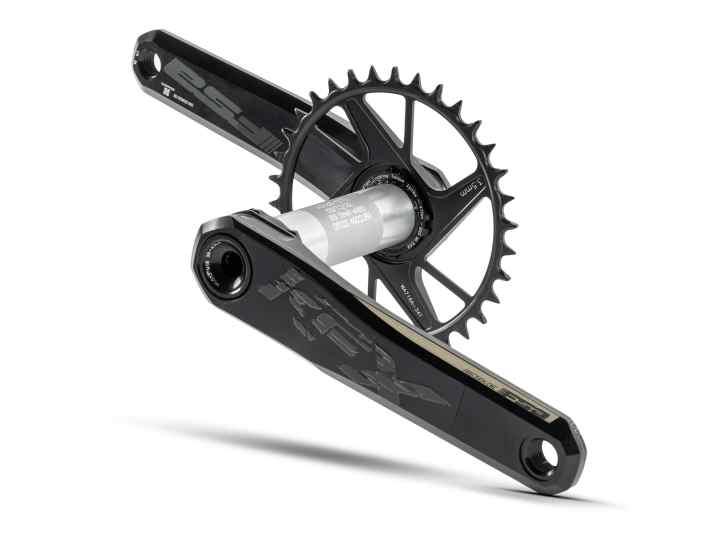

Why change the crank on an E-MTB?

Not all cranksets behave the same on the trail. Length, material and compatibility with the motor system have a significant influence on dynamics and riding safety.

The crank length is one of the decisive factors here. Shorter crank arms reduce the risk of pedal contact with rocks or roots - a common problem in technical uphill passages or blocked descents. This ensures a smoother and more controlled pedalling in demanding terrain.

FSA offers cranks in various lengths - from 150 mm to 175 mm. This allows riders to perfectly customise their setup to suit the terrain, their riding style and their personal preferences. The range includes forged aluminium options for maximum robustness as well as hollow carbon versions for those who value minimum weight and maximum agility.

Another key element is the bottom bracket. Many FSA cranks rely on the ISIS drive standard, which is still one of the most widely used standards among e-bike motor manufacturers due to its reliability and stability at high torques.

Wide compatibility with e-bike motors

One of the biggest challenges in the e-bike world is compatibility. With the large number of motor manufacturers and constantly changing standards, the search for the right component can be complex.

FSA solves this problem with cranks and spiders designed for the most popular motor systems on the market. The compatibility options include variations in:

• Q-factor: for different frame geometries and riding styles
• Interface types: such as ISIS, JIS or Direct Mount
• Optimised chain lines: for perfect drive alignment

These solutions enable precise integration on different platforms and ensure a clean chain line and maximum efficiency. Find here the right crank arms for motors from Avinox, Bosch, Yamaha, Shimano and many more.

Aluminium or carbon? Choosing the right material

The choice of material depends heavily on the area of application.

Aluminium cranks - mostly made of AL6061/T6 or die-cast aluminium - are made for bikers who are often out and about on rough terrain. Their impact resistance makes them ideal for technical trails where durability is paramount.

Hollow carbon cranks on the other hand, focus on low weight and responsiveness. The hollow construction significantly reduces mass without compromising stability, which improves acceleration and pedalling efficiency. In many cases, carbon cranks weigh around 310 grams per pair. Aluminium models, on the other hand, weigh around 450 grams.

Chainrings and chainline: Small details, big effect

An often overlooked area for upgrades is the chainring.

The chainrings from FSA feature the patented MegaTooth® anti-drop profilethat guides the chain safely even in rough terrain.

Various chainline options - typically 50 mm, 52 mm and 55 mm - allow bikers and mechanics to optimise the alignment of the drivetrain depending on the frame design, kinematics and motor placement. Specialised chainguards are also available to further increase reliability in muddy or rocky conditions.

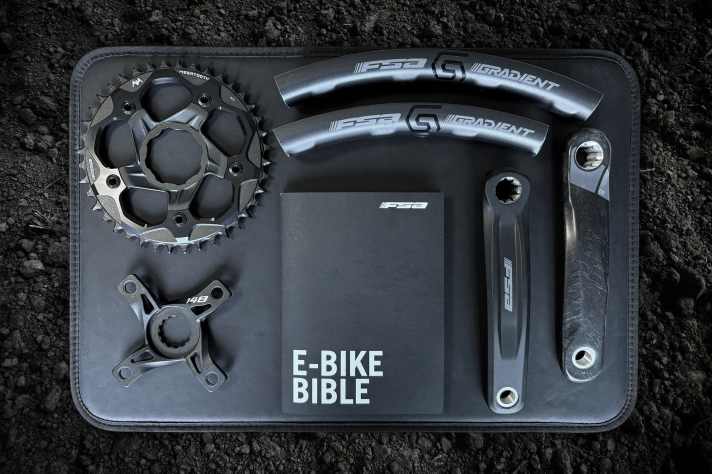

The FSA "E-Bike Bible": a practical tool for compatibility

To make the complexity of modern e-bike systems manageable, FSA has developed the "E-Bike Bible" - a comprehensive technical reference work for mechanics, dealers and service centres.

The guide provides detailed information on:

• Compatibility tables between motors and components
• Specifications for Q-factor and interfaces
• Measured values for chain line and offset
• available crank lengths and weights

The latest edition now also includes compatibility with the AVINOX M1 motor system and thus supports an even wider range of e-bike platforms.

The result is a practical tool for the workshop that simplifies maintenance and ensures that the right parts are found quickly.

Wheel upgrades: the right way to handle more power & weight

While the cranks influence efficiency, the wheels define how an E-MTB feels on the trail.

E-bikes generate higher torques and have a higher system weight. In combination with an aggressive riding style, this places enormous demands on the material.

Improve special E-MTB wheels:

• the lateral stiffness
• Traction and grip
• the steering precision
• the durability under high loads

FSA offers various wheel platforms that are precisely tailored to these requirements.

E-MTB carbon wheelset

These wheels were developed from the ground up for e-bikes. The asymmetric carbon rim ensures even spoke tension, which increases lateral stiffness and steering precision. The carbon construction reduces rotating mass and improves agility. The reinforced hubs with direct-pull spokes are designed for a system weight of up to 150 kg designed.

E-MTB aluminium wheelset

For riders who value robustness and an excellent price-performance ratio. The asymmetric aluminium design offers stability and durability, even under intensive conditions. Like the carbon version, this wheelset is also suitable for up to 150 kg and available in 27.5" and 29".

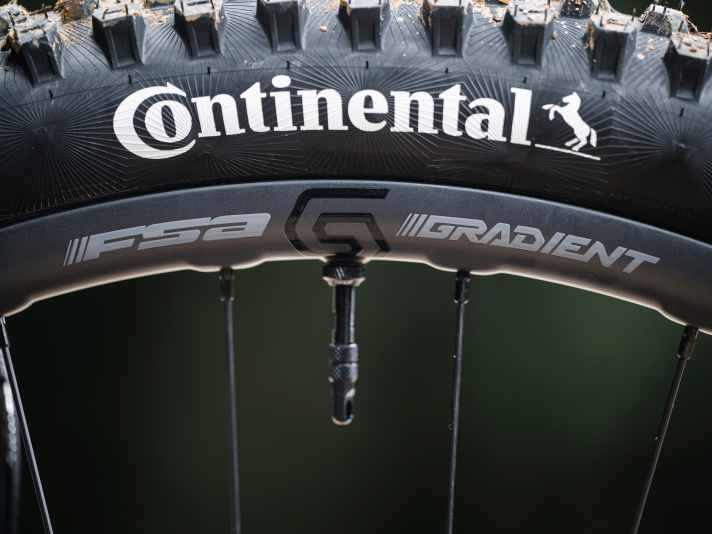

Gradient i30 Carbon: Developed for racing

The high-end model, the Gradient i30 carbon wheelset, is designed for maximum stability and response behaviour.

The asymmetric hookless carbon rim with 30 mm inner rim width supports wide tyres for optimum grip.

The PRS X-900 hubs with 72 intervention points guarantee immediate power transmission - particularly valuable in technical sections.

To the product: https://shop.fullspeedahead.com/de/type/wheelsets-spares/wheelsets/mtb/gradient-i30-carbon

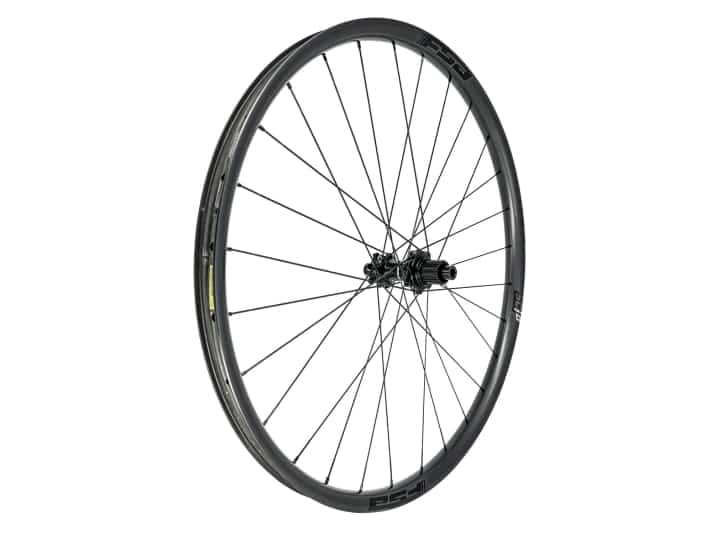

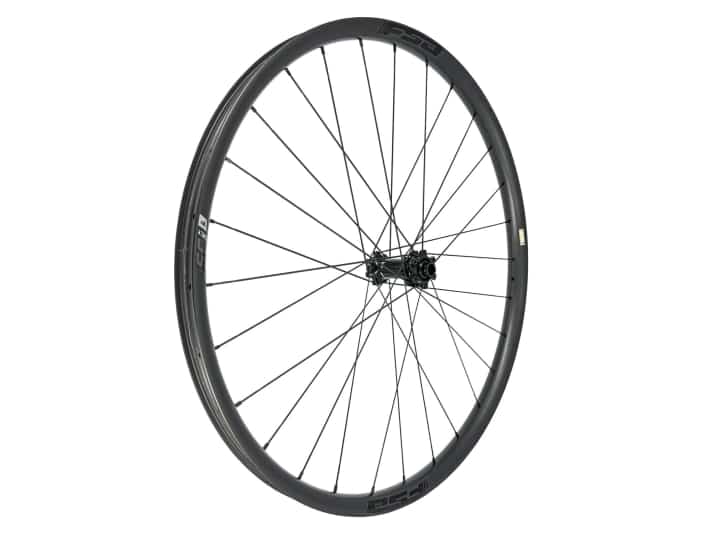

NS SC i30: Versatility for modern trails

The NS SC i30 wheelset focuses on versatility and resilience across various disciplines. It offers an optimum balance of performance and reliability for all-mountain and enduro use. It is also compatible with lightweight E-MTB systems and offers excellent traction on different surfaces thanks to the 30 mm wide carbon hookless rim.

To the product: https://shop.fullspeedahead.com/de/type/wheelsets-spares/wheelsets/mtb/ns-sc-i30-wheelset

A smart upgrade for a new driving experience

With modern e-MTBs, the motor and chassis usually take centre stage. However, the decisive connection between rider and bike ultimately runs through the cranks and wheels.

Choosing the right crank length, material and optimising the drive increases pedalling efficiency and reduces disruptive influences on the trail - such as pedal bob. At the same time, more stable and responsive wheels guarantee stability, precision and durability under the special requirements of riding with motor support.

With a modular range that is consistently trimmed for practicality and performance, FSA delivers upgrade solutions that you can feel from the very first metre.
